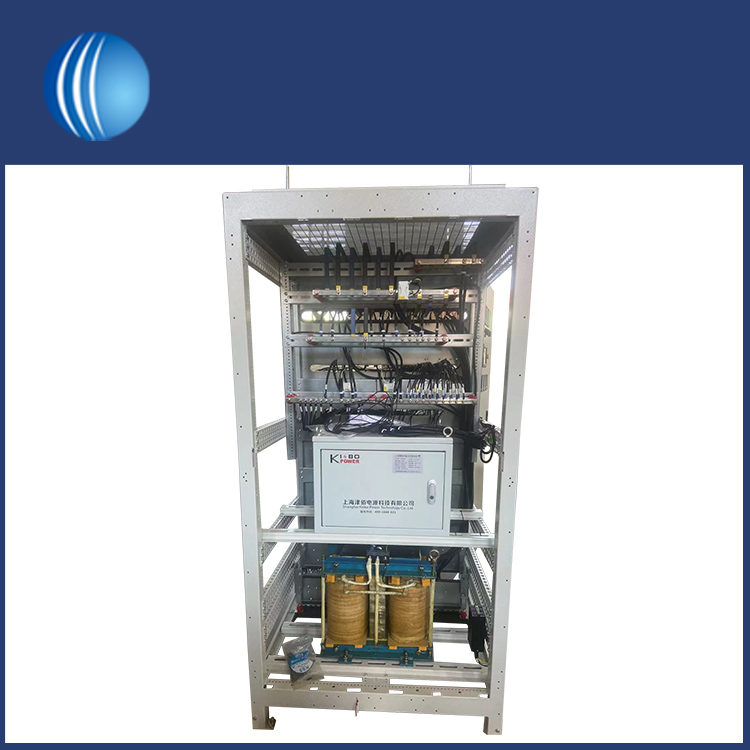

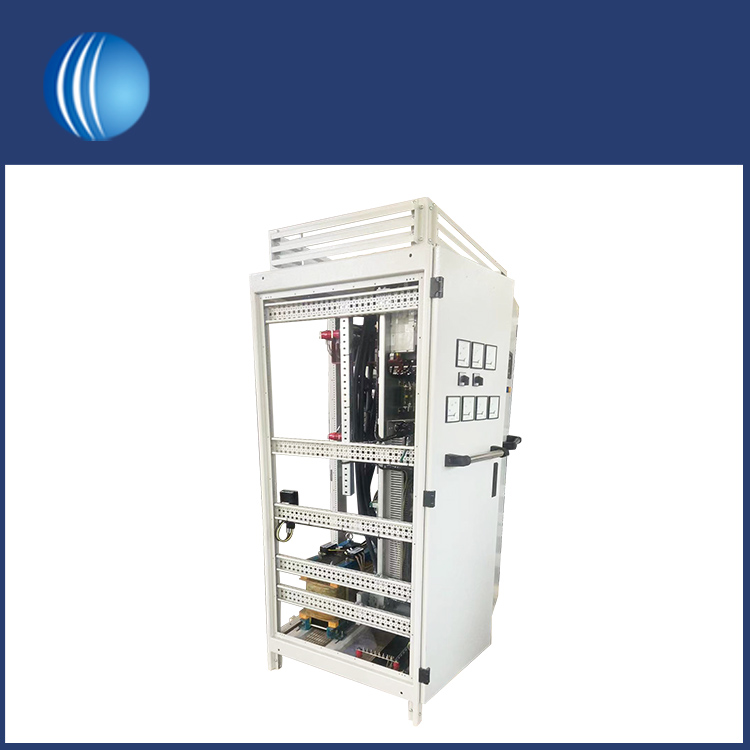

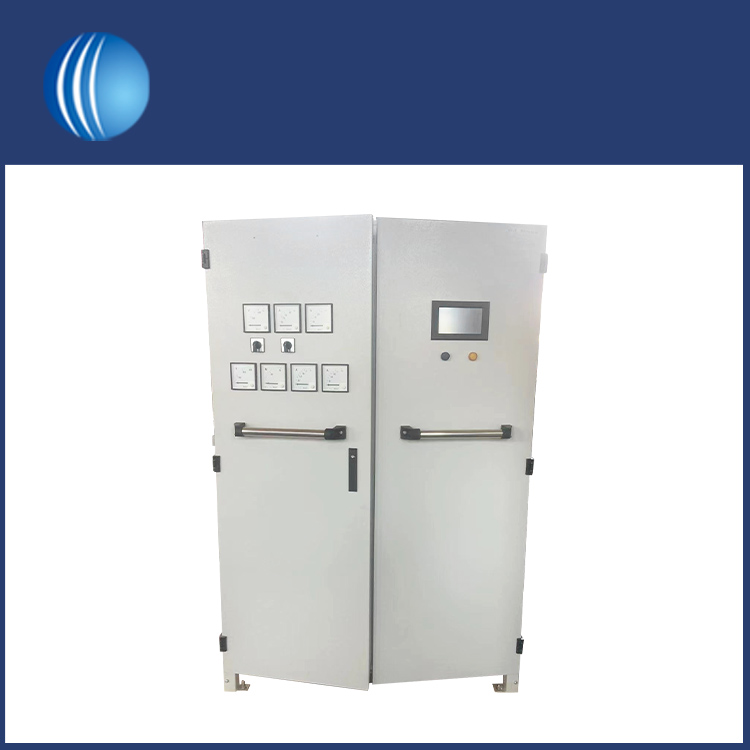

Controlgear motor cabinet is commonly used in industrial settings, such as manufacturing plants, to centralize the control and distribution of power to multiple motors.We are SKYT®'s agent in China, and our factory is a modern production base with advanced equipment and facilities to ensure efficient production processes.
A controlgear motor cabinet, also known as a motor control center (MCC), is an enclosed assembly of electrical components used for controlling, monitoring, and protecting electric motors in industrial settings. It serves as a centralized hub for motor operations and power distribution.
The controlgear motor cabinet consists of several essential components:
Main power disconnect: This is a high-current switch or circuit breaker located at the input of the controlgear motor cabinet. It enables the complete isolation of power from the main electrical supply, ensuring the safety of personnel during maintenance or emergency situations.
Motor starters: Motor starters are devices used to control the starting, stopping, and speed regulation of electric motors. They typically incorporate contactors, which are large power relays capable of handling high currents. The contactors provide the electrical connection to the motor and are controlled by control signals from the control circuitry.
Control circuitry of controlgear motor cabinet: The control circuitry includes relays, timers, and other control devices responsible for coordinating and sequencing motor operations. Control relays are used to control various motor functions, such as direction of rotation or switching between multiple motors. Timers enable delayed or timed motor actions, while interlocking devices ensure that motors are operated in a safe and coordinated manner. Control signals from the control circuitry activate the motor starters.
Controlgear motor cabinet power distribution components: These components distribute electrical power from the main supply to individual motor circuits within the cabinet. They typically include circuit breakers or fuses for overcurrent protection. Busbars, which are conductive bars, are used to carry the power to various locations within the controlgear motor cabinet. Terminals or connectors are provided to facilitate the connection of motor cables to the power distribution system.
Control power transformer of controlgear motor cabinet: In some cases, a control power transformer is employed to step down the voltage from the main power supply to a lower level suitable for the control circuitry. This provides a separate power source for the control circuitry, ensuring electrical isolation and allowing for safe control operations.
Monitoring and protection devices of controlgear motor cabinet: These devices are crucial for monitoring motor conditions and providing protection against faults. Thermal overload relays are used to monitor motor temperature and protect against overheating by tripping the motor circuit in case of excessive heat. Motor protection relays provide comprehensive protection against various faults, including overcurrent, under/over-voltage, phase imbalances, and ground faults. Voltage and current monitoring devices continuously monitor the electrical parameters of the motors, enabling operators to detect abnormalities or potential issues.
Enclosure: The controlgear motor cabinet is housed within a robust enclosure made of metal, which provides electrical insulation, mechanical protection, and environmental resistance. The enclosure safeguards personnel from accidental contact with live components and protects the equipment from external factors such as dust, moisture, and physical damage.
The controlgear motor cabinet is designed to provide a centralized and organized system for controlling, protecting, and distributing power to electric motors. It simplifies maintenance, troubleshooting, and repairs by locating all motor control equipment in one place. It enhances safety by isolating power sources, incorporating protective devices, and facilitating efficient motor management.
Shouke Yuantuo Technology Co., Ltd. is a leading technology company located in China and is SKYT's agent in China.Our production line adopts automation technology and intelligent control, which can meet the needs of large-scale production and customized production. At the same time, we pay attention to environmental protection and take multiple measures during the production process to reduce adverse effects on the environment.
