Electrical control panels are an important part of various electrical systems. At its core, it is a metal housing that houses important electrical components that monitor and control mechanical processes.
Electrical control panels are also known as switchboards, control centers, and control panels. They are designed to meet the automation requirements of various industrial processes. These panels contain a variety of electrical components that work together to control and operate mechanical equipment.
Industrial control panel components include:
Circuit breakers, suppressors, and fuses; power distribution; power supplies; communications; motor drives; terminal blocks; relays and contactors; human-machine interfaces; transformers; wire ducts and DIN rails; other components such as housings, backplanes, and grounding plates for regulating power and control signals.
The electrical control panel housing plays the role of its main body, and the housing is made of metal, mainly made of aluminum or stainless steel. It stores the components inside and acts as a barrier between internal hazards and external personnel. The housing must be strong enough to provide protection in the installation environment, and is usually made of materials that can withstand wind and rain, high temperatures, and corrosion to extend its service life.
The size of the electrical control panel housing is very important. Choose the right size according to the actual situation. We provide a variety of size products and support OEM customization. If you are not sure about the specific size, contact us and tell us your needs. Shouke will provide you with the right product.
SKYT's electrical control panels include: PLC panel; MCC panel; low-voltage switchgear
PLC panel is a special steel box that contains the electrical components required to run factory machines or processes. PLC stands for programmable logic controller, which is an industrial-strengthened computer that is usually located inside a factory control panel. High-voltage components are an integral part of many other items inside.

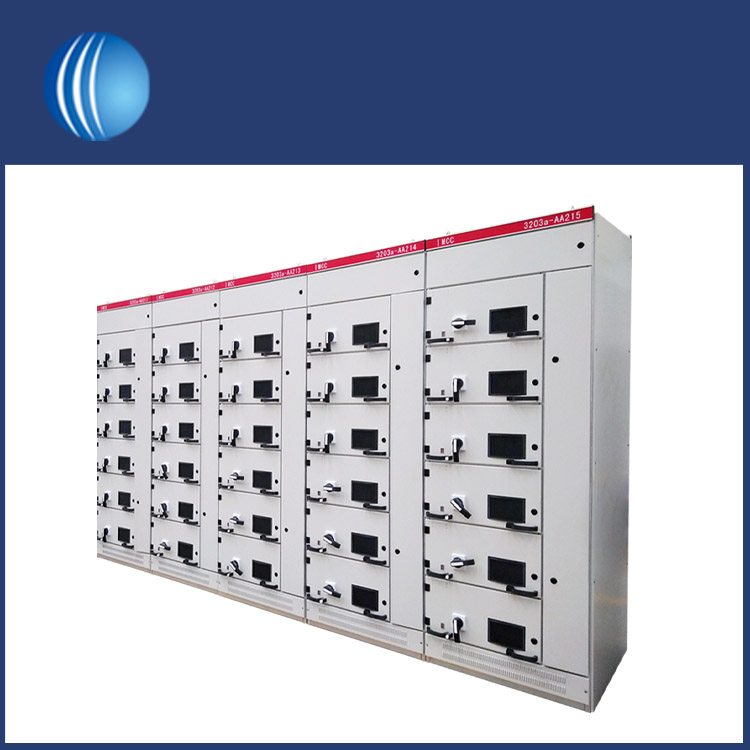

Motor control center (MCC) is a component that centrally controls multiple or all motors. It has multiple enclosed sections and a common power bus. Each section has a combination starter consisting of a motor starter, fuse or circuit breaker, and power circuit breaker.
What is the difference between PLC and MCC panels?
MCC: Motor control center or substation that supplies power to motors. PLC: control system that controls motors based on logic (automatic) or operator operation (manual).

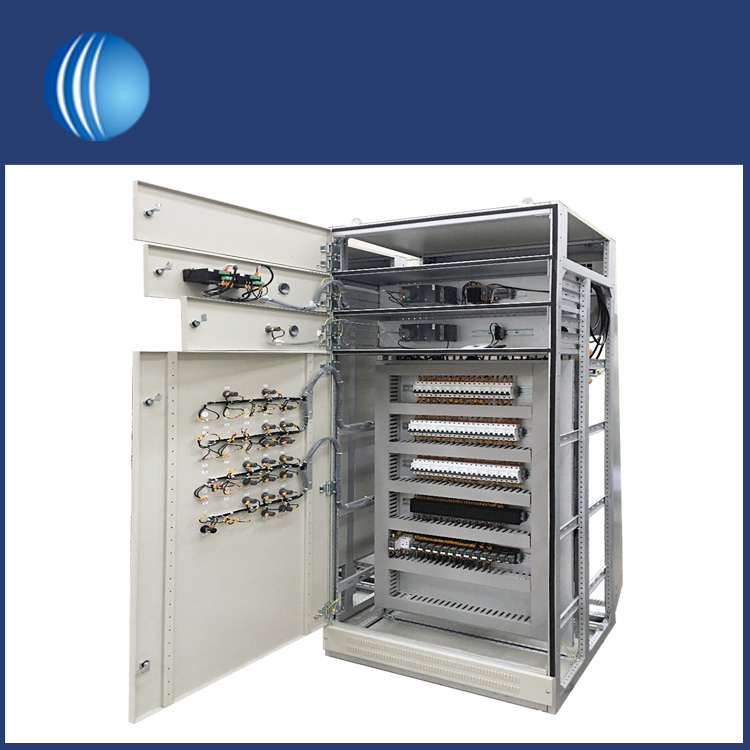

Low-voltage switchgear provides short-circuit and overload protection through a low-voltage power circuit breaker (LV-PCB) with an integrated trip device. These low voltage circuit breakers are usually devices that are withdrawn through a door.
Electrical control panels can help reduce repair and maintenance costs. With proper maintenance, electrical control panels can extend the life of the equipment, avoid frequent replacement, and regularly maintain to ensure optimal performance and safety. The maintenance process may include inspection, testing, and replacement of faulty components. The maintenance plan for the control panel must be carefully followed to prevent damage to the equipment or the machinery it controls.
SKYT has high-quality after-sales service. The service team is online 24 hours a day to answer questions and provide assistance, saving you time and money and ensuring the safe and efficient operation of the machine. Contact us to solve your problems with electrical equipment and provide you with the right solution.
We can provide UL certification, CE certification, professional personnel, strict quality control, and excellent equipment to provide you with one-stop service.
