In order to ensure the safe and stable operation of the power grid, the basic installation of outdoor low voltage distribution cabinets must be carried out strictly in accordance with the specifications.Shouke® manufacturers have professional installation standards.

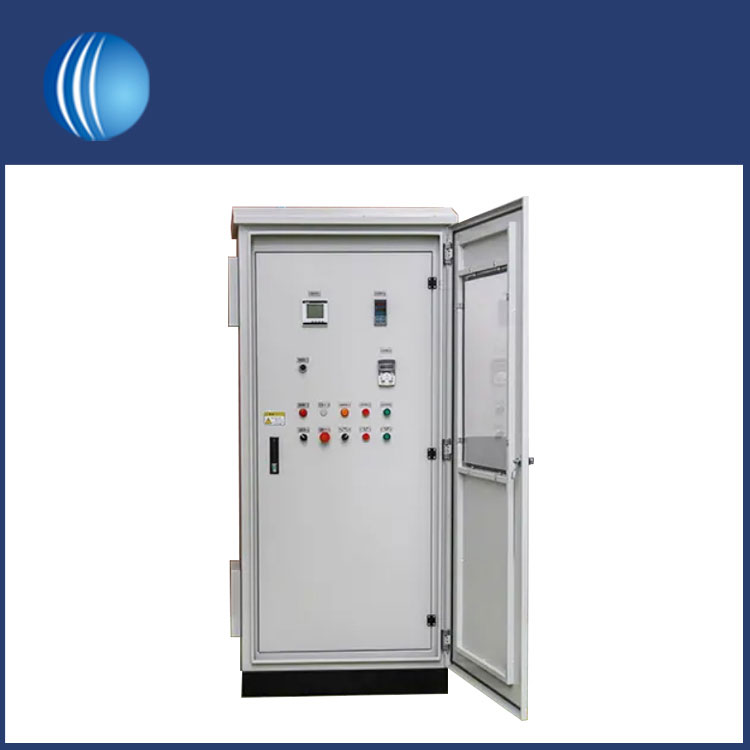

Outdoor low voltage distribution cabinets are electrical cabinets used for distributing and controlling electricity to outdoor areas and are responsible for efficiently and safely distributing electricity to outdoor areas.
Foundation Construction Requirements:
It is advisable to employ a concrete foundation, with dimensions conforming to the outdoor low voltage distribution cabinet's standards.
The depth of the foundation holes should not be less than the height of the lower support plate of the outdoor low voltage distribution cabinets. The bottom of the holes should be even, and the hole walls should exhibit no significant loosening.
The foundation holes must be thoroughly cleaned to remove all gravel, cement residue, and other impurities.
Prior to pouring, the holes should be re-cleaned to ensure they are dry and free from debris.
When pouring concrete, ensure it is fully compacted and free from air pockets.
Cabinet Installation Process:
Place the outdoor low voltage distribution cabinet's base plate on the foundation and adjust it using a level.
Install the bolts at the four corners of the cabinet in sequence, and tighten them one by one.
Mount the front control panel of the outdoor low voltage distribution cabinet and secure it with screws.

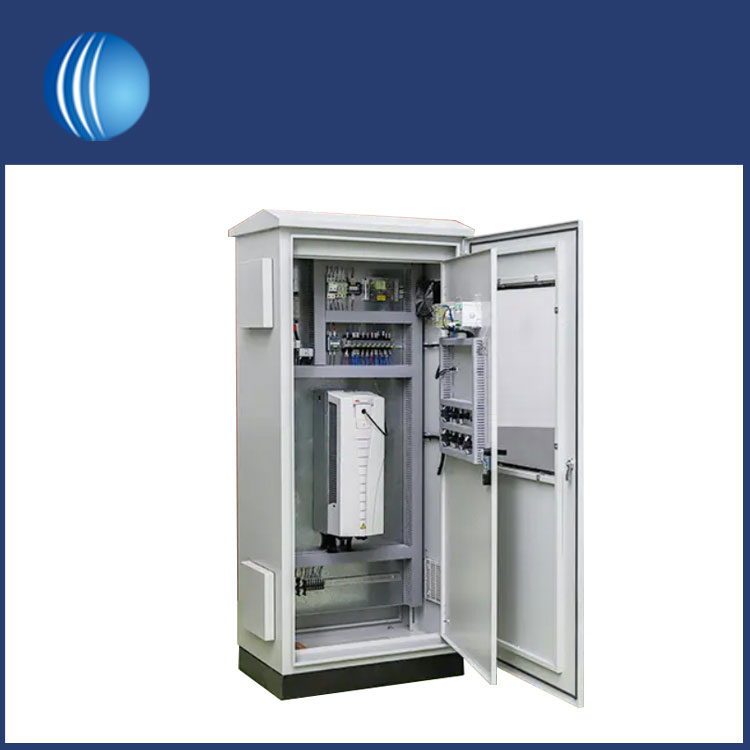

Assemble various components within the cabinet, including glass doors, leakage protectors, circuit breakers, etc.
Precautions During Construction:
Foundation construction should be undertaken in favorable weather conditions. In case of rain or snow, construction should be postponed.
Ensure the concrete is fully compacted during pouring to prevent the formation of air pockets.
During outdoor low voltage distribution cabinet installation, ensure proper leveling and correct orientation. Tighten the bolts at the four corners one by one.
After installation, inspect the installation of all components. If any are loose, adjust and tighten them immediately.
Pay attention to safety precautions during installation, such as avoiding reckless operation of equipment and working at heights.
Outdoor low voltage distribution cabinet foundation installation is an important step in the power system, reasonable and standardised foundation construction, cabinet installation procedures and construction precautions can effectively enhance the installation quality and service life of the distribution cabinet, construction must be carried out in strict accordance with the specifications to ensure that the quality of the installation and personnel safety.
