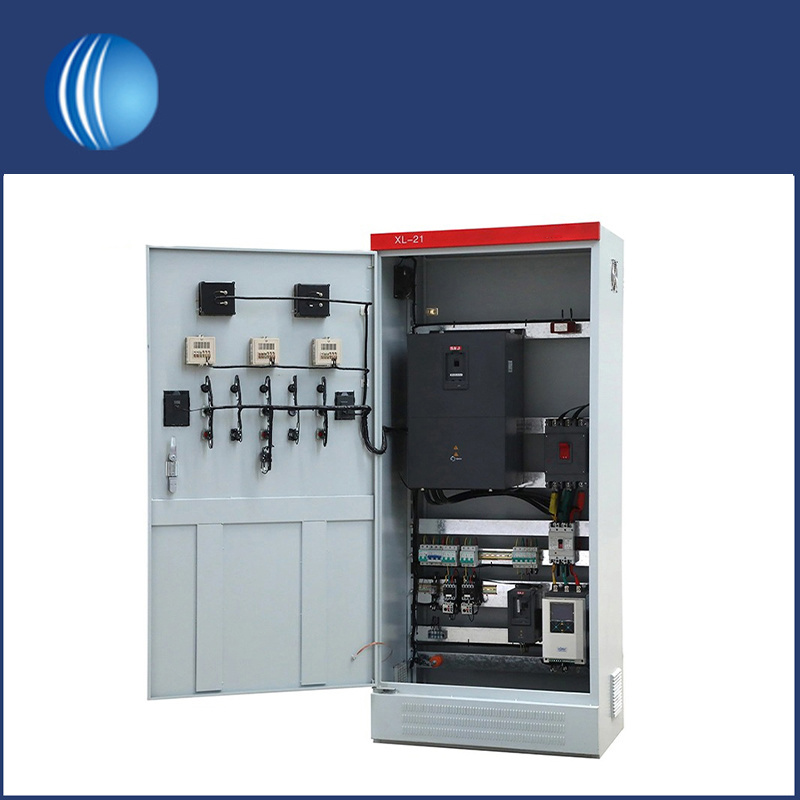

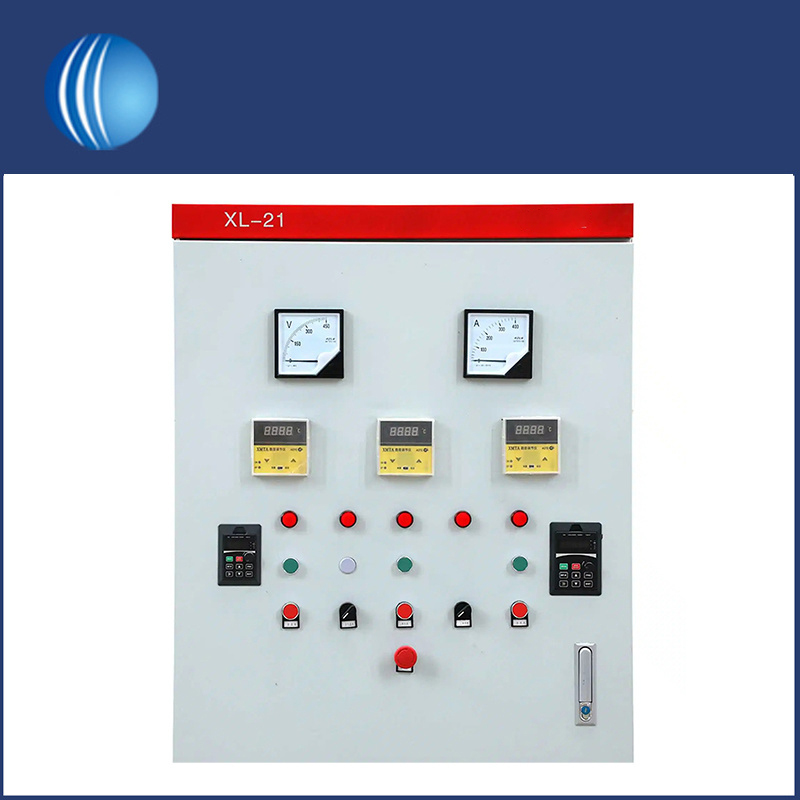

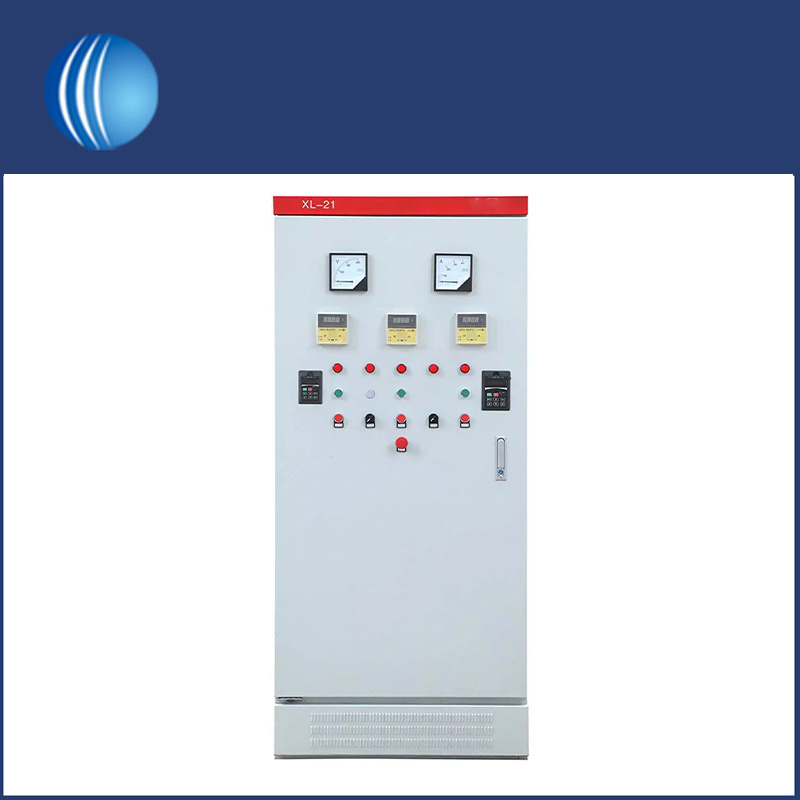

Switchgear Cabinets

Switchgear cabinets are an enclosed structure designed to contain electrical switchgear, which is a general term for the apparatus used to control, protect, and isolate electrical equipment. These cabinets ensure the reliable distribution and management of electrical power, safeguarding both the equipment and personnel from electrical hazards.

Key Functions of Switchgear Cabinets

1.Protection: Switchgear cabinets protect electrical circuits from faults, such as short circuits or overloads, by interrupting the current flow.

2.Control: They allow for the manual or automatic control of electrical equipment, ensuring efficient operation and maintenance.

3.Isolation: Switchgear cabinets isolate electrical equipment for maintenance or repair, ensuring safety for maintenance personnel.

4.Regulation: They help in regulating the flow of electrical power to maintain system stability and efficiency.

Types of Switchgear Cabinets

Switchgear cabinets can be classified based on their configuration, voltage level, and application:

1.Metal-Enclosed Switchgear: These are commonly used in industrial and commercial applications. They offer a high degree of protection and are designed for both medium and high voltage applications.

2.Gas-Insulated Switchgear (GIS): GIS cabinets use sulfur hexafluoride (SF6) gas for insulation, making them compact and suitable for high-voltage applications in space-constrained environments.

3.Air-Insulated Switchgear (AIS): These are typically used in outdoor settings for high voltage applications, where space is not a significant constraint.

4.Pad-Mounted Switchgear: Designed for distribution applications, these cabinets are often found in urban and suburban areas, providing reliable power distribution.

Components of Switchgear Cabinets

1.Circuit Breakers: Devices that automatically interrupt electrical flow in the event of a fault.

2.Disconnect Switches: Used to isolate electrical equipment from the power supply for maintenance.

3.Fuses: Protective devices that melt and break the circuit when the current exceeds a specific value.

4.Relays: Devices that detect faults and initiate the operation of circuit breakers.

5.Busbars: Conductive bars that distribute electrical power to various components within the cabinet.

6.Meters and Instruments: Used for monitoring electrical parameters such as voltage, current, and frequency.

7.Control Panels: Provide interfaces for manual control and monitoring of the switchgear operations.

Importance of Switchgear Cabinets

Switchgear cabinets play a vital role in ensuring the safe and efficient operation of electrical power systems. Their importance can be summarized as follows:

1.Safety: They protect personnel and equipment from electrical hazards by containing and managing electrical faults.

2.Reliability: By ensuring the continuous and stable distribution of power, switchgear cabinets contribute to the reliability of electrical systems.

3.Efficiency: They help in optimizing the performance of electrical systems, reducing energy losses and improving overall efficiency.

4.Maintenance: Switchgear cabinets facilitate the safe and convenient maintenance of electrical equipment, minimizing downtime and operational disruptions.

Applications of Switchgear Cabinets

Switchgear cabinets are used in various applications across different sectors:

1.Industrial Plants: For controlling and protecting machinery and processes.

2.Commercial Buildings: Ensuring reliable power distribution to essential services.

3.Utilities: Managing power distribution in electrical grids and substations.

4.Renewable Energy Systems: Integrating and managing power from renewable sources such as wind and solar.

Conclusion

Switchgear cabinets are indispensable in modern electrical systems, providing the necessary control, protection, and isolation to ensure safe and efficient power distribution. Understanding their functions, types, and components is essential for anyone involved in the design, operation, or maintenance of electrical systems. As technology advances, switchgear cabinets continue to evolve, offering enhanced performance and greater reliability for a wide range of applications.

SKYT® is a professional manufacturer who is always ready to provide you with professional services.
